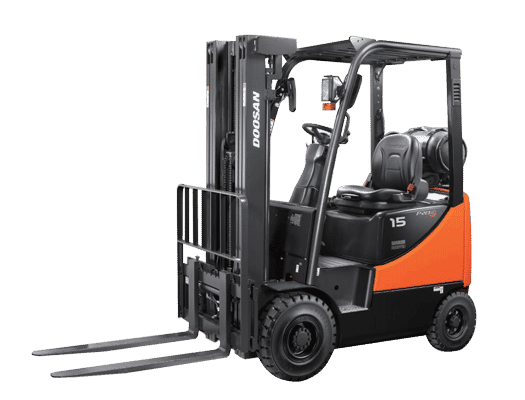

  • Pro-5 Series IC Pneumatic

    3,000 lbs. - 4,000 lbs. Capacity

    Improving productivity and lowering operation costs, the range introduces a number of operator comfort refinements, advanced servicing features and performance efficiencies

    Download Brochure

    Safety

    Operator Sensing System

    • Alarm warning when operator leaves the seat without applying parking brake
    • Seat belt indicator : 10 second warning light reminds operator to fasten seat belt.
    • Neutral shift feature : Transmission is automatically shifted into neutral when the operator leaves the seat.

    Rear Grab Bar with Horn

    Enables horn activation to alert surrounding personnel without the need to look away from the direction of travel.

    Download Brochure
    Safety

    Convenience

    Convenience

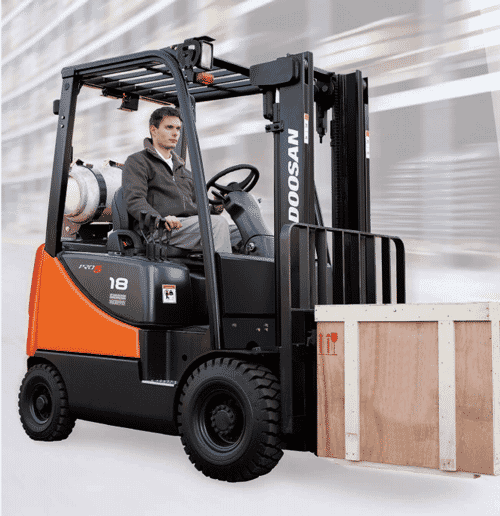

    Our ergonomically designed and spacious operator compartment, combined with a variety of operational enhancements, facilitates easier operation, improving comfort and helping to boost productivity.

    • Spacious and Well Planned Operator compartment
    • Convenience Package, provides excellent storage for paperwork, refreshments, small tools, etc.
    • Integrated instrument panel provides critical information instantly. Fuel, oil pressure, temperature and hour usage are clearly indicated.
    Download Brochure

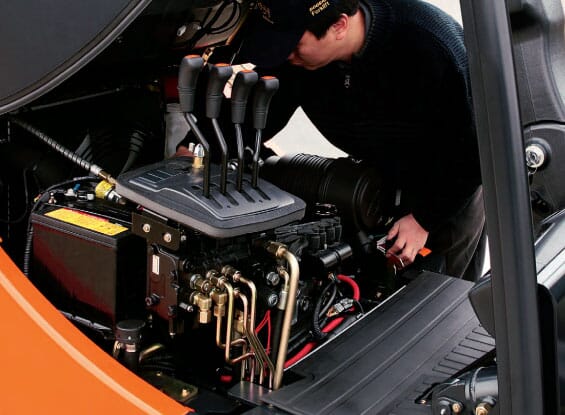

    Maintenance

    Doosan’s goal is to make your material handling operation as efficient and reliable as possible by minimizing your forklifts downtime to reduce overall maintenance cost.

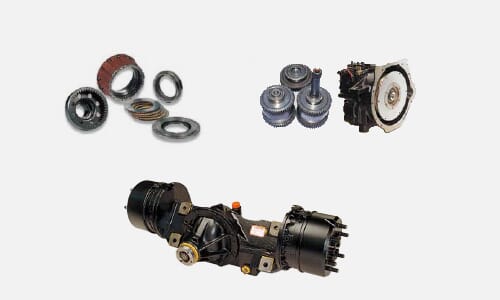

    • Oil- Cooled Disc Brakes (ODB)
    • Limited Power reversal transmission(up to 5 mph)
    • Full floating drive axle
    • Hydrostatic steering system
    • Increased Cooling Capacity
    Download Brochure
    Maintenance

    Extended Value

    Extended Value

    High Powered and Fuel – Efficient LPG Engines Provide High Performance Levels.

    The Doosan forklifts powerful 2.4L LPG engine are EPA compliant for reduced emissions.

    These in-line, 4-cylinder, water cooled, overhead valve engines provide high torque at low engine speeds for applications requiring ramp loading and unloading, fast lift speeds, or heavy hydraulic flow requirements.

    Download Brochure

    For Pricing, Parts & Service, and More

    Find your Local Dealer

    Pro-5 Series IC Pneumatic

    At Doosan, we pride ourselves on our reputation for designing durable, dependable and operator-friendly counterbalance forklifts. Providing a well balanced mix of enhanced technology and proven components, the newly re-designed 3,000lb(1,500kgs) to 7,000lb(3,500kgs) Pro-5 range adheres closely to this ethos.

    MODEL G15S-5LP G18S-5 G20SC-5
    RATED CAPACITY (lb) 3,000 4,500 4,000
    MAX TORQUE (ft.lb/rpm) 109(148)/1,600 109(148)/1,600 109(148)/1,600
    ENGINE MODEL G424I(E) G424I(E) G424I(E)
    POWER (hp/rpm) 45.5(33.9)/2,450 45.5(33.9)/2,450 45.5(33.9)/2,450
    DISPLACEMENT (cc) 2,359 2,359 2,359
